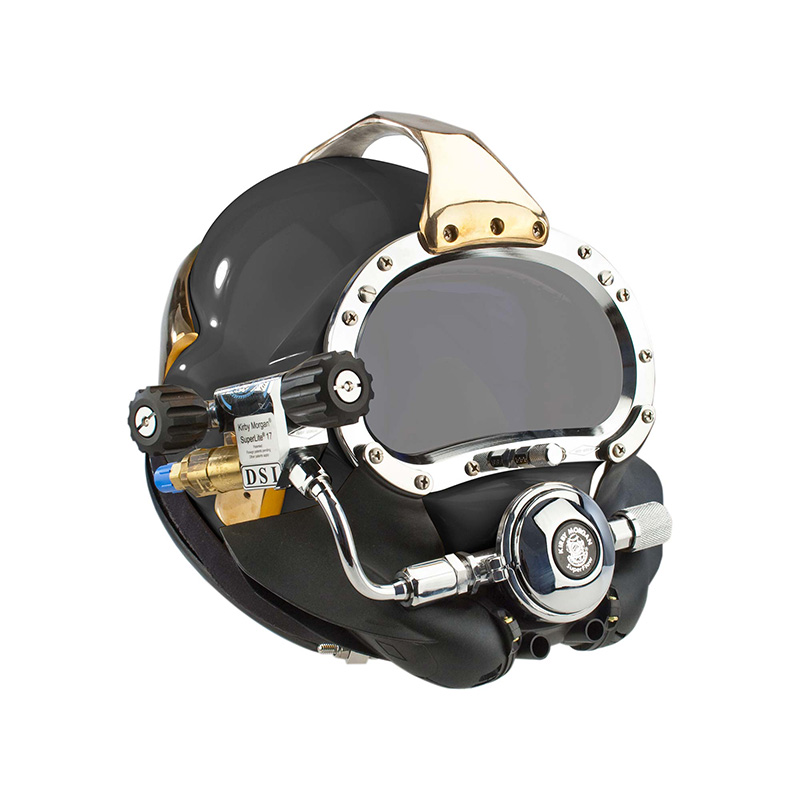

The helmet system consists of two pieces: the neck dam/yoke and the helmet. The diver slips on the angled neck dam with the attached yoke. The neck clamp is then slipped onto the helmet and locked. The locking system not only seals the neck dam to the helmet but also secures the front of the yoke.
The SuperLite® 17B also includes our Quad-Valve Exhaust System which retrofits to many of our helmets. This exhaust has exceptionally low exhalation resistance that you must experience to appreciate. The SL 17A/B Helmet Retainer (chin strap) along with the SL 17A/B Yoke Retainer (yoke strap) make it virtually impossible to have the hat come loose. These are standard on all SL 17B helmets and will retrofit to all previous SL 17 A/B Helmets.
The SuperLite® 17B offers comprehensive head protection, an adjustable demand breathing system for gas economy, antiflooding features, rapid emplacement, a neck dam clamp that mechanically breaks a low-pressure lock, and a trim to fit angled neck dam which seats the helmet comfortably, especially when working in the face down position. The pull pin neck clamp release provides a system for prevention of accidental helmet removal.

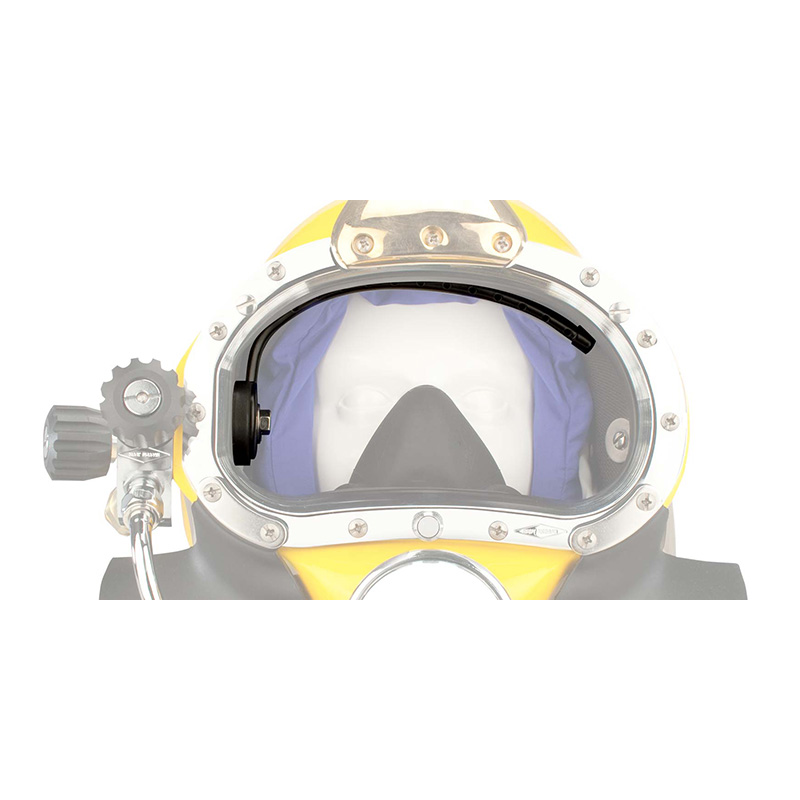

The air train diffuses incoming breathing air/gas onto the face port/lens to defog and ventilate.

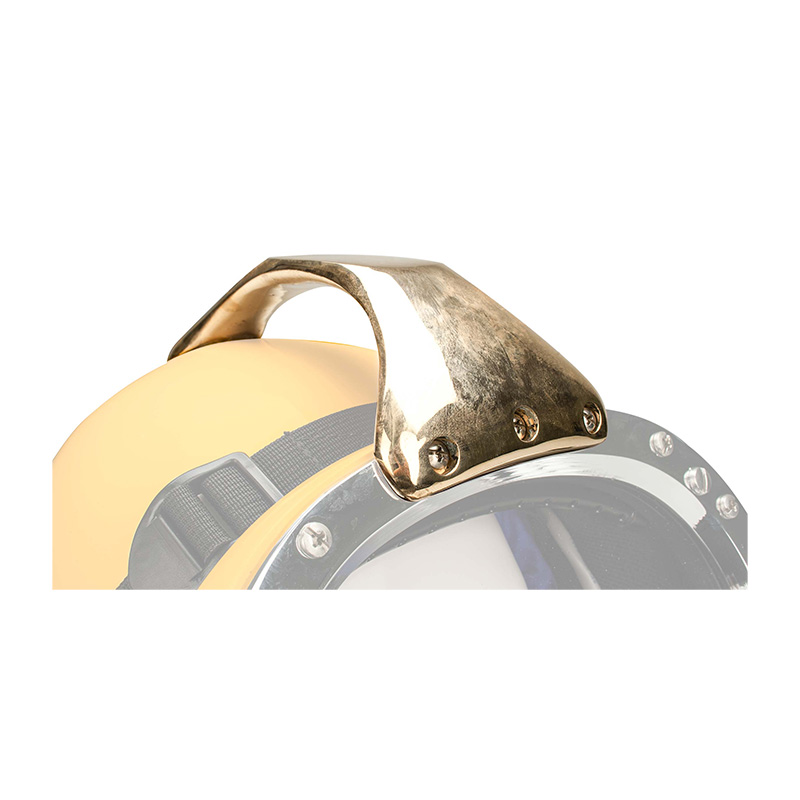

Handle can be removed without breaking seals, making it quick and easy to attach accessories.

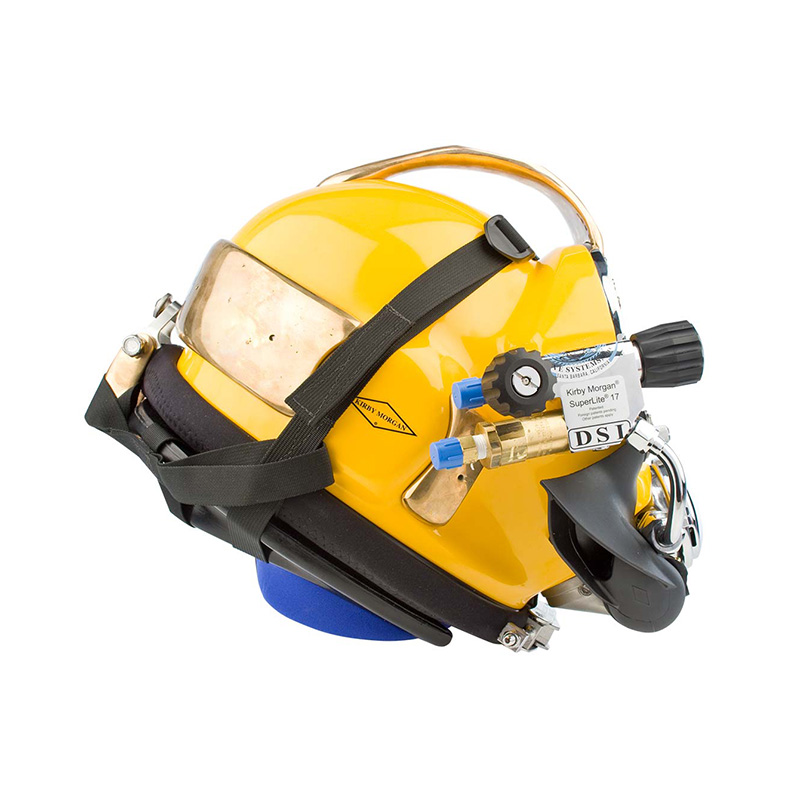

The SL-17B Helmet ships with a low profile strap system designed to retain the helmet to the neck clamp/yoke assembly in the event these two main components accidentally become separated.
Provides an additional flow of gas into the helmet for ventilation and defogging.
Supplies backup breathing gas to the diver.
Kirby Morgan® has over 50 years experience in composite laminations. The helmet shell is hand laid up glass fiber reinforced thermal setting polyester (fiberglass) with carbon fiber reinforcement at key points for added durability. It is light and highly impact resistant, and provides a heat/cold barrier as well as being an excellent electrical nonconductor.
Commercially Rated™ It prevents loss of gas pressure in the event of umbilical damage.
Allows the diver to block the nose to equalize ears.
Multi use side block has additional ports built in to provide controlled air flow, if needed.
Made of a superior silicone material which is hypo-allergenic and has a longer work life than latex.

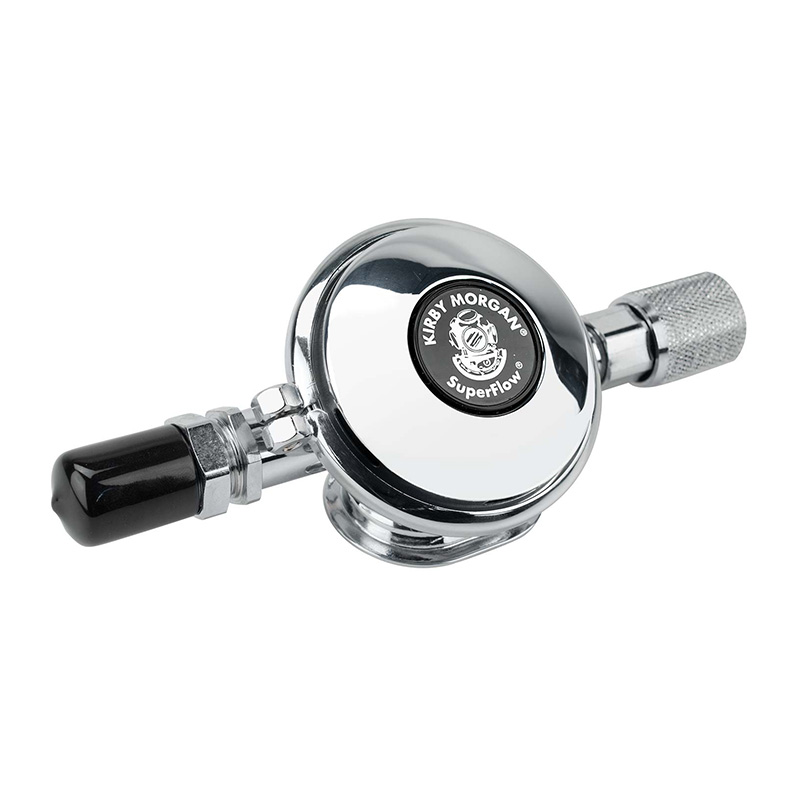

The 505-027 SuperFlow® "B" regulator on the SuperLite® 17B offers high performance. The regulator has been tested at Dive Lab at Panama City, Florida. It meets all current U.S. Navy and European diving standards.
Bubble deflecting Whisker wings keep bubbles further from face port and ears, improving visibility and decreasing internal noise.
